Pressure Vessels and Pressure Tanks Manufacturers, Suppliers, Exporters in Pune from India, Kolkata, Orissa, Jharkhand, Bangalore, Chennai, Telangana

Our company “Perfectplus Engineering India Pvt. Ltd.” is the leading manufacturer, supplier and exporter of Pressure Vessels & Pressure Tanks in in Pune from India, Kolkata, Orissa, Jharkhand, Bangalore, Chennai, Telangana.


Pressure Vessel & Pressure Tanks Offered By Our Company

Our Pressure Vessel & Pressure Tanks manufacturer company in Pune develops huge variety of these vessels to best suited regarding the needs of our clients and are as given:

  • Spherical Pressure Vessel
  • Horizontal Pressure Vessel
  • Cylindrical Pressure Vessel
  • Vertical Pressure Vessel, Etc.

We Pressure Vessel & Pressure Tanks suppliers in Pune provide them with innovatively designed features for easy storage of fluids under varying pressure values above ranges of normal atmospheric pressure to give desired results to our clients.

Our Pressure Vessel & Pressure Tanks manufacturers company in Pune creates them by using different kinds of specific raw materials like titanium, stainless steel, nickel alloys, Hastelloy, aluminium, carbon steel, etc. to meet the specific requirements of our prestigious clients.


An Overview Towards The Topic

Pressure Steel

PRESSURE VESSEL is a type of container of closed type which is designed for holding liquids or glasses. They are held at a range of higher or lower pressures as compared to the ambient pressure.


Pressure Tanks

PRESSURE TANKS are used for storing the pressurized water. This water is then distributed or passed with the help of a plumbing system. These tanks are operated by keeping the stored amount of water within constant pressure range.

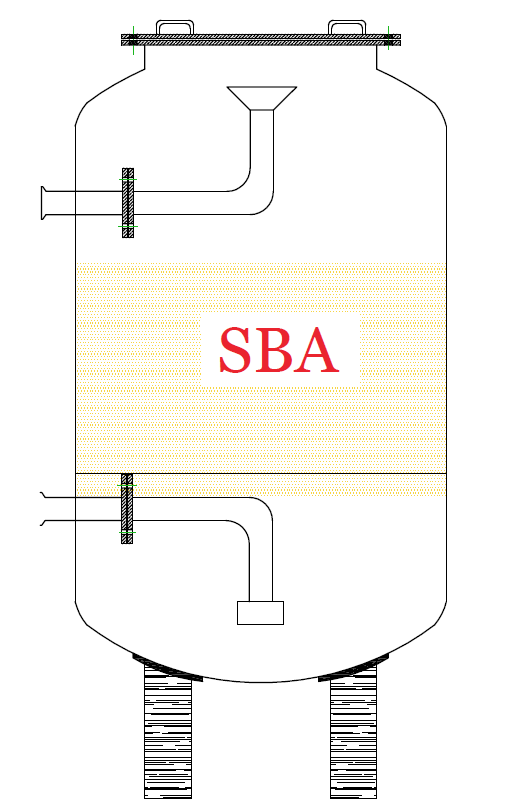

Strong Base Anion Vessel


Strong base anion unit is a vessel in which an ion exchange process takes place. OH¯ ions replace the anions present in TDS to produce demineralized water. The anions present in the water i.e. Cl, SO4, HCO3 and silica etc. are exchanged with OH¯ ions available in the resin and water is demineralized. Therefore, water becomes demineralized resulting in a solution of pure water. When the anion exchanger gets exhausted, it is regenerated with caustic solution to replenish OH¯ ions. They can be operated manually or automatically. They are available as co-flow and countercurrent regeneration units.

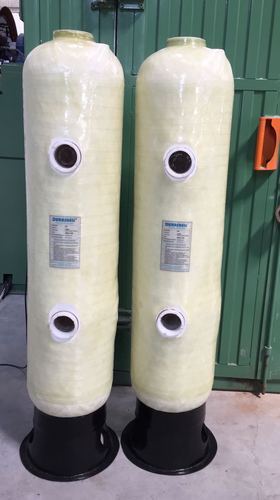

Mixed Bed Vessel


Mixed bed is used to remove traces of ion in water. Basically it is used after DM/RO plant depending on TDS



Brand DURASHELL
Capacity 100-500 L
Material FRP
Features Vertical Orientation
Max Design Pressure 0-10 bar
Vessel Dimensions ( length X width X Height) 844-3072
Minimum Order Quantity 1 Unit

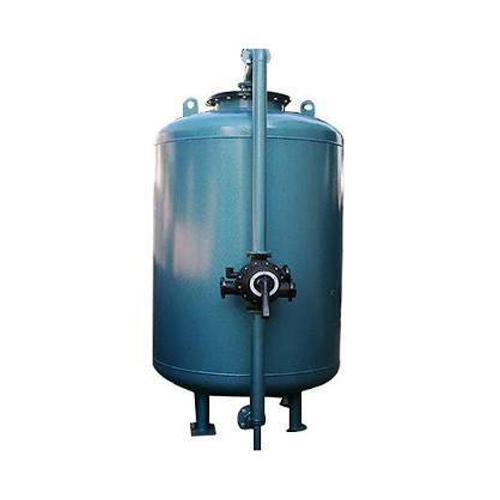

Softner Vessel




Capacity 10000 L
Softener Tank Type Vertical
Material Mild Steel
Capacity (m3/hr) 3.0, 50
Max Design Pressure 0-10 bar, 10-15 bar, 15-20 bar
Body Material Stainless Steel
Type Softener, Water Softener



Pressure Sand Filter


These filters are the most popular method for removal of turbidity from water. The Pressure Sand Filter consists of a multiple layer of sand with a variety in size and specific gravity. These Filters are designed to remove turbidity and suspended particles present in the feed water with minimum pressure drop. These Filters are custom designed to suit the process requirement. These filters are offered in Mild Steel, FRP or SS construction with face piping and associated Valves.

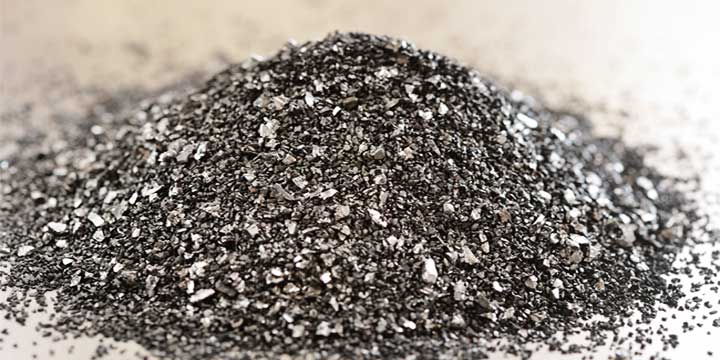

Activated Carbon Filter


Activated carbon filters are small pieces of carbon, typically in granular or powdered block form, that have been treated to be extremely porous. It is so cavernous, in fact, that just one gram of activated carbon can easily have a surface area of 500m2 or higher. Vast surface area enables these carbon filters to adsorb exponentially more contaminants and allergens than traditional carbon.






Multi Grade Filter


The MGF works on principle of retention and removal of physical impurity in a graded manner through Voids of the filtering media.
Multi grade filter is a depth filter that makes use of coarse and fine media mixed together in a fixed proportion. This arrangement produces a filter bed with adequate pore dimensions for retaining both large and small suspended particles. This filter performs at a substantially higher specific flow rate than conventional filters.

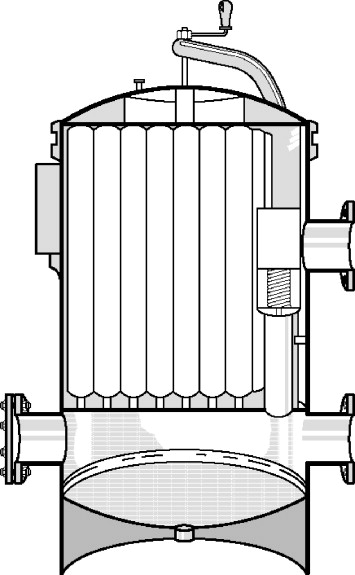

Cartridge Filter


Solid material suspended in the water gets trapped on the cartridge filter. The filter will be rated to remove particles of a certain size – for many supplies, several filters in descending order of particle removal size will be needed. A typical choice would be a 20 micron filter followed by a 5 and / or 1 micron filter, but the exact choice depends on the quality of the supply and the substance(s) that need to be removed. The filter should be clearly marked with its size rating.
As long as they are installed and used correctly, cartridge filters can remove sediment, metals and some microorganisms from the water. It is necessary to make sure that the filters are correctly sized for the flow of water you require, otherwise they may block. Cartridge filters work best in situations where there is not much solid material in the water supply and little iron or manganese (less than about 300 microgrammes per litre) of iron. Filters containing loose media may need to be used where there is a significant quantity of sediment in the water or higher concentrations of iron and manganese. In order to remove Clostridium with certainty, a filter rated at 0.5 micron will be needed. For Cryptosporidium this should be 1 micron. Some filters are impregnated with carbon to remove low concentrations of the organic compounds that cause colour in water.

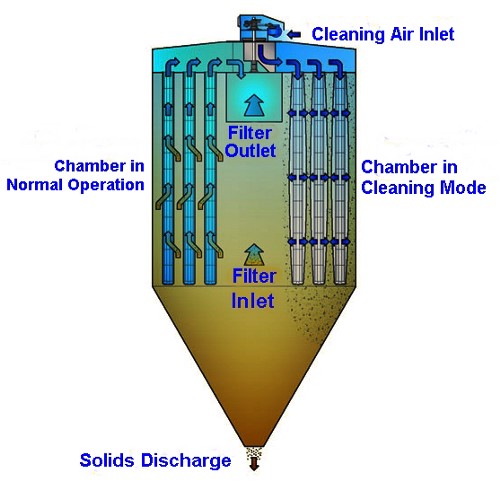

Bag Filter


A Bag Filter is an air pollution controlling industrial equipment, used prominently in a Steam Boiler House Assembly. It is used to control the levels of sulfur dioxide and others. There are different types of Bag Filters such as Shakers, Reverse Air and Pulse Jet type, with Pulse jet type being the most promising one of outstanding results.

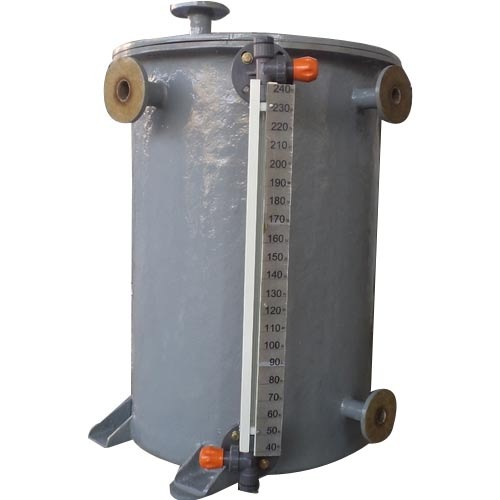

Acid Measuring Tank


With our years of experience, we are engaged in manufacturing an exclusive range of Acid Measuring Tanks to our valued clients. These tanks are sturdily designed and ensure long lasting service life. The tanks that are offered by us are available in different capacities and dimensions.


Max Pressure 100-150 psi
Storage Capacity 250-500 L
Storage Type Any
Warranty Any
Wall Thickness Any
Usage/Application Any
Capacity 5000-10000 L

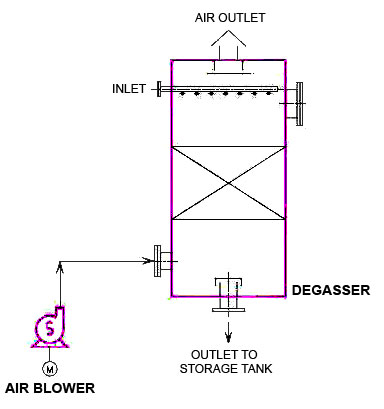

Degassed Tower


Degasser in water treatment is referred to Decarbonator where the primary importance is to remove Carbon Dioxide from the water. They play an important role when Alkalinity is present in water. Water containing alkalinity causes deposits and blocks the tubes in the boiler. It is placed after the Cation exchanger to mechanically remove the Carbon Dioxide. Water containing Bicarbonates when passed through the Cation Exchanger is converted to Carbonic Acid. The Carbonic Acid easily breaks into Water and Carbon Dioxide. HCO3 = H2O + CO2 This CO2 can be mechanically removed by the Degasser by blowing air counter current to the water flow.

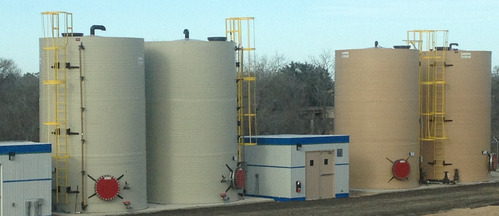

Bulk Acid Storage Tank


Bulk Acid Storage Tanks: Other Details: Supplied with fire retardant and ultra violet resistant additives as per specific requirements.
Suitable for using highly corrosive chemicals at maximum temperature up to 150 degree centigrade.
Designed for pressure and vacuum conditions.
Supplied with double wall construction.
Designed and supplied for above and underground applications.
Thermoplastic welded joints with conductive layer.
Vertical cylindrical, horizontal cylindrical and with require type of end closures.
Supplied along with additional accessories like ladder, handrail, platform, level indicators, leg supports and saddle supports.
Advantages:
Very good corrosion resistance
High mechanical strength at low specific gravity
Good resistance to weathering
Light weight
Good insulating qualities
Provide less maintenance repairs down time
Easy installation
Capacity:
up to 100 KL


Storage Material Water, Chemicals/Oils, Milk/Dairy, Gases, Waste
Capacity 0-250 L, 250-500 L, 500-1000 L, 1000-5000 L, 5000-10000 L
Features Leg Support, Horizontal Orientation, Vertical Orientation, Level Indicator Equipped, High Temperature Resistant
